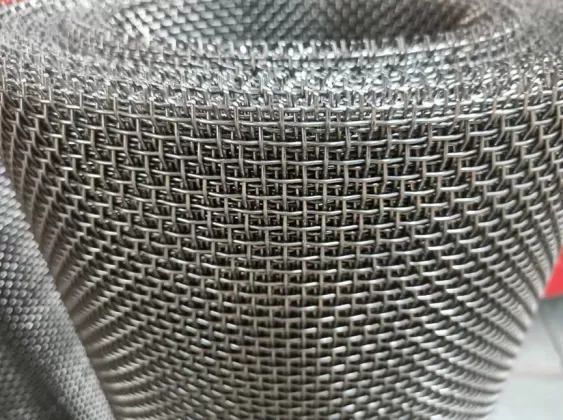

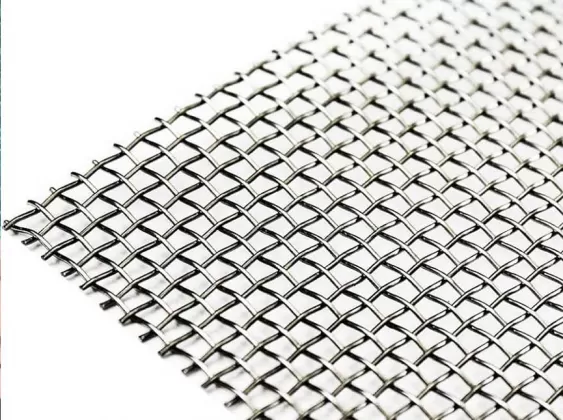

Galvanized square mesh, is woven by Electro-galvanized wire, Hot-dipped galvanized wire. It also could be galvanized after woven. Galvanized wire netting is available in Plain Weave, Plain Dutch weave, crimped and Herringbone Twill or Spigata. surface finish galvanized, square bore, each weft wire above and below the warp line bypassing one,Each warp is bypassed above and below the weft, and each warp has the same diameter as the warp.


Share:

Features Specifications Technology Application Inquriy

Galvanized square mesh, is woven by Electro-galvanized wire, Hot-dipped galvanized wire. It also could be galvanized after woven. Galvanized wire netting is available in Plain Weave, Plain Dutch weave, crimped and Herringbone Twill or Spigata. surface finish galvanized, square bore, each weft wire above and below the warp line bypassing one,Each warp is bypassed above and below the weft, and each warp has the same diameter as the warp.

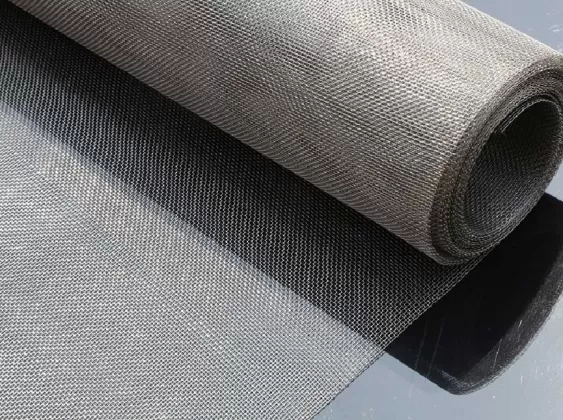

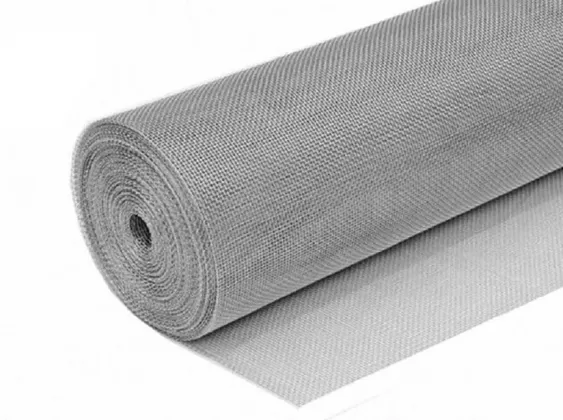

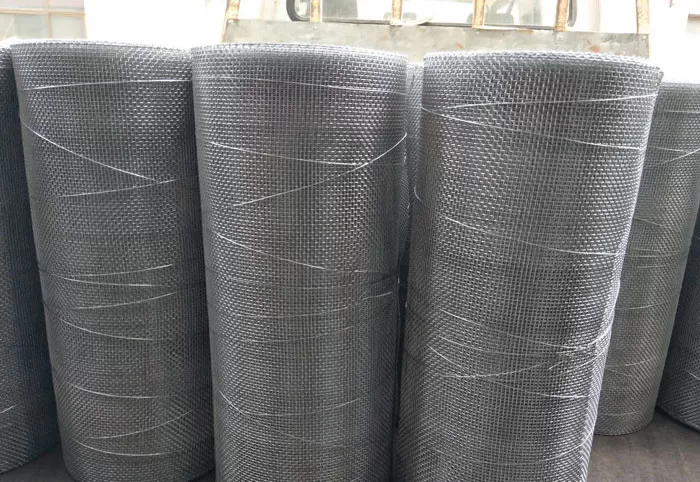

Galvanized square mesh rolls

Specifications

Mesh/inchWire Dia. (mm)Aperture (mm)
21.6011.10
41.205.15
51.004.08
60.803.43
80.602.57
100.551.99
120.501.61
140.451.36
160.401.19
180.351.06
200.300.97
300.250.59
400.200.44
500.160.35
600.150.27
Available in width: 0.60m-1.5m



Technology

Material: Galvanized steel wire

Mesh Size: 3-60mesh

Wire Dia: 0.5-6.5mm

Width: 0.5-2/roll or 1-2m/roll,according to customer' request

Length: 10-50m

Finish: The mesh has a silver-gray appearance due to the galvanized coating.

Character: structural precision,uniform mesh,good crossion resistancestrong and durable.


Application

Galvanized square mesh widely used in environmental protection, pharmaceutical, chemical, food, machine,Machinery industry, smelting industry, coal mining, paper making, cement, construction, sieving sands, window screening,decoration and other industries.
