Welded Wire Mesh Sizes and Specifications Guide

Choosing the right welded wire mesh size and specifications is essential for ensuring performance, durability, and cost efficiency in construction, fencing, agriculture, and industrial applications. Different projects require different wire diameters, mesh openings, coatings, and panel formats.

For buyers, engineers, and contractors, understanding welded wire mesh specifications helps avoid over-specification, reduce costs, and improve long-term project reliability.

In this guide, we explain the most important welded wire mesh sizes, technical specifications, and selection tips to help you choose the right product for your application.

What Is Welded Wire Mesh?

Welded wire mesh is a steel reinforcement or fencing material made by welding intersecting steel wires at right angles to form a uniform grid pattern. It is available in panels or rolls, depending on usage.

Key advantages include:

High structural strength

Uniform mesh spacing

Easy installation

Cost efficiency

Wide application range

Main Welded Wire Mesh Specifications

When selecting welded wire mesh, you should focus on the following key parameters:

1. Wire Diameter (Thickness)

Wire diameter is one of the most important factors affecting strength and durability.

Common wire sizes:

1.5–2.5 mm → Light-duty applications

2.5–4.0 mm → Standard construction and fencing

4.0–6.0 mm → Heavy-duty industrial use

Thicker wire provides higher strength but increases cost and weight.

2. Mesh Opening Size

Mesh size refers to the distance between wires (center to center). It affects both strength and visibility.

Standard mesh sizes:

25 × 25 mm → High-security and anti-climb applications

50 × 50 mm → Common fencing and construction use

75 × 75 mm → Medium-strength applications

100 × 100 mm → Light-duty fencing or reinforcement

Smaller mesh = stronger security but higher material cost.

3. Panel Size (Sheet Dimensions)

Welded wire mesh is often supplied in standard panel sizes:

2.0 m × 2.0 m

2.0 m × 2.5 m

2.4 m × 3.0 m

Custom sizes available

Larger panels reduce installation time.

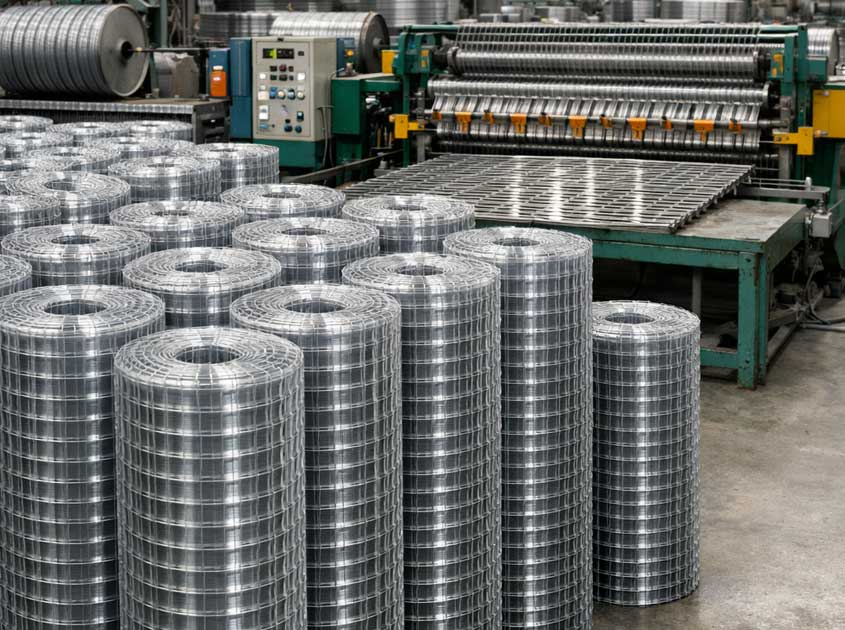

4. Roll Size (for Flexible Mesh)

For rolled welded mesh:

Width: 0.5 m – 2.0 m

Length: 10 m – 30 m or customized

Rolls are commonly used for fencing and agricultural applications.

5. Surface Treatment

Surface coating determines corrosion resistance and lifespan.

Galvanized Welded Wire Mesh

Zinc-coated steel

Good rust resistance

Cost-effective

Hot-Dip Galvanized Mesh

Thicker zinc layer

Superior corrosion protection

Longer lifespan

PVC Coated Mesh

Plastic protective layer

Enhanced durability and appearance

Available in green, black, white, etc.

Stainless Steel Mesh

Highest corrosion resistance

Premium quality material

Long service life

Welded Wire Mesh Types by Application

1. Construction Reinforcement Mesh

Used in:

Concrete slabs

Road construction

Bridges and tunnels

Typical specifications:

Wire diameter: 3.0–6.0 mm

Mesh size: 100 × 100 mm or smaller

2. Fencing Mesh Panels

Used for:

Industrial fencing

Security perimeters

Residential boundaries

Typical specifications:

Wire diameter: 3.0–5.0 mm

Mesh size: 50 × 50 mm or 75 × 75 mm

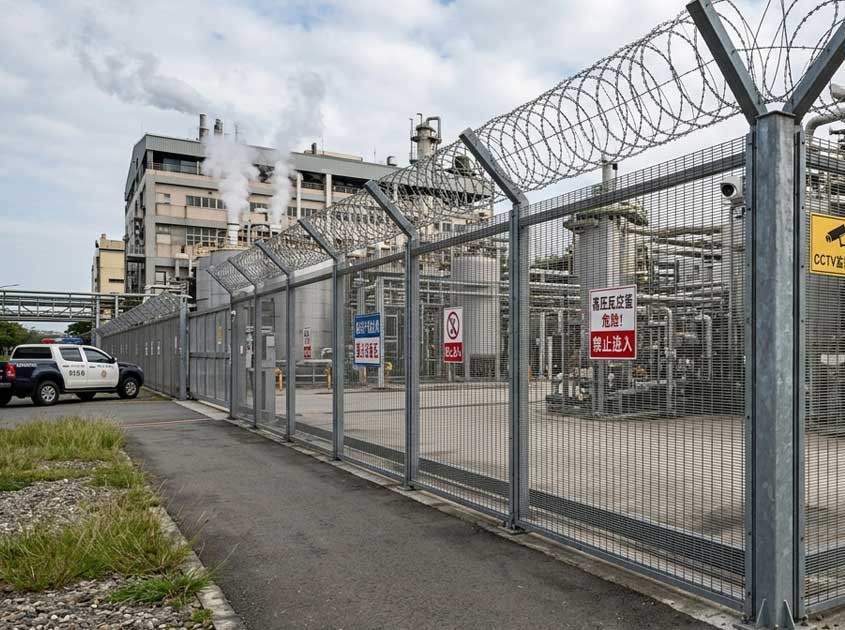

3. Security Welded Mesh (High-Security Use)

Used in:

Airports

Prisons

Government facilities

Typical specifications:

Wire diameter: 4.0–6.0 mm

Mesh size: 25 × 12.7 mm or similar anti-climb design

4. Agricultural Welded Mesh

Used for:

Animal enclosures

Farm fencing

Crop protection

Typical specifications:

Wire diameter: 2.0–3.0 mm

Mesh size: 50 × 50 mm or larger

How to Choose the Right Welded Wire Mesh

1. Define Project Purpose

Structural reinforcement → thicker wire, smaller mesh

Fencing → balanced wire and mesh size

Security → anti-climb design required

2. Consider Environment

Coastal or humid areas → galvanized or PVC coated

Dry inland areas → standard galvanized acceptable

3. Load and Strength Requirements

Heavy load → thicker wire diameter

Light load → thinner wire acceptable

4. Budget Planning

Standard galvanized mesh → most cost-effective

PVC or stainless steel → higher cost but longer lifespan

5. Installation Requirements

Large panels reduce labor cost

Rolls offer flexibility for uneven terrain

Common Mistakes When Selecting Mesh

Using large mesh for security applications

Choosing thin wire for load-bearing structures

Ignoring corrosion resistance requirements

Overpaying for unnecessary premium materials

Not matching specifications to project environment

Industry Trends in Welded Wire Mesh

Global demand is increasing due to:

Infrastructure development

Industrial expansion

Agricultural modernization

Security requirements

Welded wire mesh is becoming a standard material in modern construction and fencing systems.

Why Work with a Professional Manufacturer

A reliable supplier ensures:

Accurate mesh specifications

High-quality welding technology

Consistent production standards

Custom sizing options

Export-ready packaging and logistics

Why Choose Us as Your Supplier

As a professional welded wire mesh manufacturer in China, we provide high-quality solutions for global construction and fencing projects.

Our Advantages:

Full range of welded wire mesh sizes and specifications

Custom production based on project requirements

Galvanized, PVC coated, and stainless steel options

Strict quality control system

Competitive factory pricing

Large production capacity for bulk orders

Extensive export experience worldwide

Professional technical and logistics support

We help clients achieve cost-effective, durable, and reliable mesh solutions for all types of projects.

Conclusion

Understanding welded wire mesh sizes and specifications is essential for selecting the right product for construction, fencing, and industrial applications.

Wire diameter determines strength

Mesh size affects security and function

Surface treatment impacts durability

Proper selection ensures cost efficiency and long-term performance

The right specification ensures better safety, durability, and project success.
