Standard Wire Diameter and Mesh Size for Welded Wire Panels

Welded wire panels are widely used in construction, fencing, security, industrial protection, and infrastructure projects. When selecting welded wire panels, two technical parameters are critical: wire diameter and mesh size.

Understanding standard specifications helps buyers, engineers, and contractors choose the right product, control costs, and ensure compliance with local building standards. This article provides a comprehensive guide to standard wire diameters and mesh sizes for welded wire panels, helping you make informed purchasing decisions.

1. What Are Welded Wire Panels?

Welded wire panels are manufactured by electrically welding longitudinal and transverse steel wires at each intersection to form rigid, flat panels. Compared to rolls, panels offer:

Higher structural rigidity

Easier installation

Consistent dimensions

Better performance in load-bearing and fencing applications

They are commonly supplied in galvanized, PVC-coated, or stainless steel finishes.

2. Why Wire Diameter and Mesh Size Matter

Wire diameter and mesh size directly affect:

Strength and load capacity

Security level

Material cost

Service life

Compliance with project standards

Choosing incorrect specifications may lead to over-engineering (higher cost) or underperformance (safety risks).

3. Standard Wire Diameters for Welded Wire Panels

Wire diameter refers to the thickness of the steel wire used in the panel. It is usually measured in millimeters (mm) or wire gauge.

Common Standard Wire Diameters

Wire Diameter (mm)

Typical Applications

2.0 – 2.5 mm    Light fencing, partitions

3.0 mm    Residential fences, garden panels

4.0 mm    Industrial fencing, warehouses

5.0 mm    Security fences, factories

6.0 mm    Heavy-duty protection, infrastructure

Selection Tips

Thinner wires reduce cost but offer less strength

Thicker wires provide better rigidity and anti-impact performance

Security and industrial projects usually require ≥4.0 mm

4. Standard Mesh Sizes for Welded Wire Panels

Mesh size refers to the distance between adjacent wires, measured center-to-center.

Common Standard Mesh Sizes

Mesh Size (mm)

Typical Use

25 × 25 mm    High-security panels

50 × 50 mm    Industrial protection

50 × 100 mm    Construction and fencing

75 × 150 mm    Perimeter fencing

100 × 100 mm    General-purpose fencing

150 × 150 mm    Light-duty applications

Smaller mesh sizes provide higher security and strength, while larger mesh sizes reduce material consumption and cost.

5. Standard Combinations Used in Practice

Most welded wire panels are produced using proven wire diameter and mesh size combinations.

Popular Industry Combinations

Wire Diameter

Mesh Size

Application

3.0 mm    50 × 100 mm    Residential fencing

4.0 mm    50 × 100 mm    Industrial fencing

4.5 mm    50 × 200 mm    Perimeter security

5.0 mm    50 × 50 mm    High-security panels

6.0 mm    25 × 75 mm    Anti-climb fencing

These configurations balance strength, cost, and installation efficiency.

6. How Applications Affect Specification Choice

Construction Projects

Common wire diameter: 3.0–4.0 mm

Mesh size: 100 × 100 mm or 150 × 150 mm

Focus: Reinforcement and stability

Security and Perimeter Fencing

Common wire diameter: 4.0–6.0 mm

Mesh size: 25 × 75 mm or 50 × 50 mm

Focus: Anti-climb and impact resistance

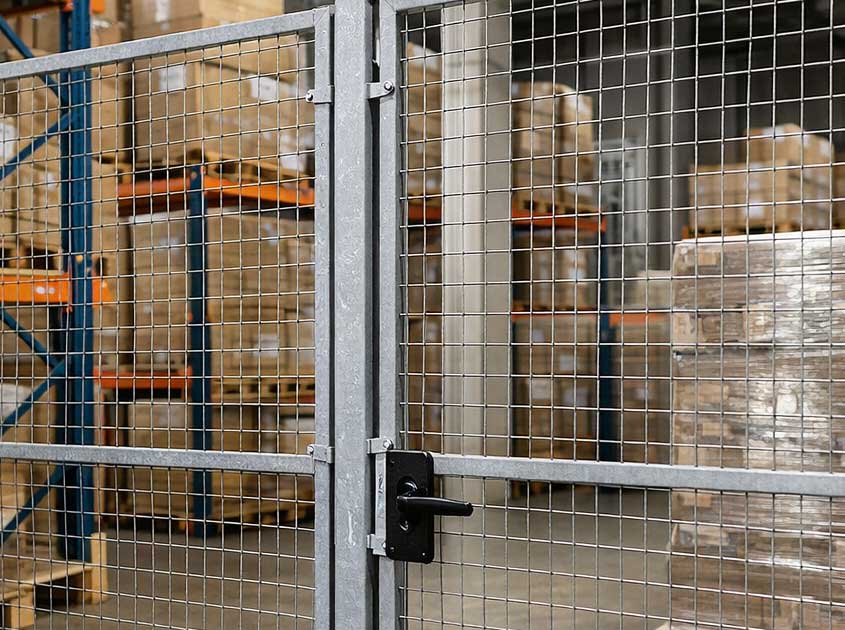

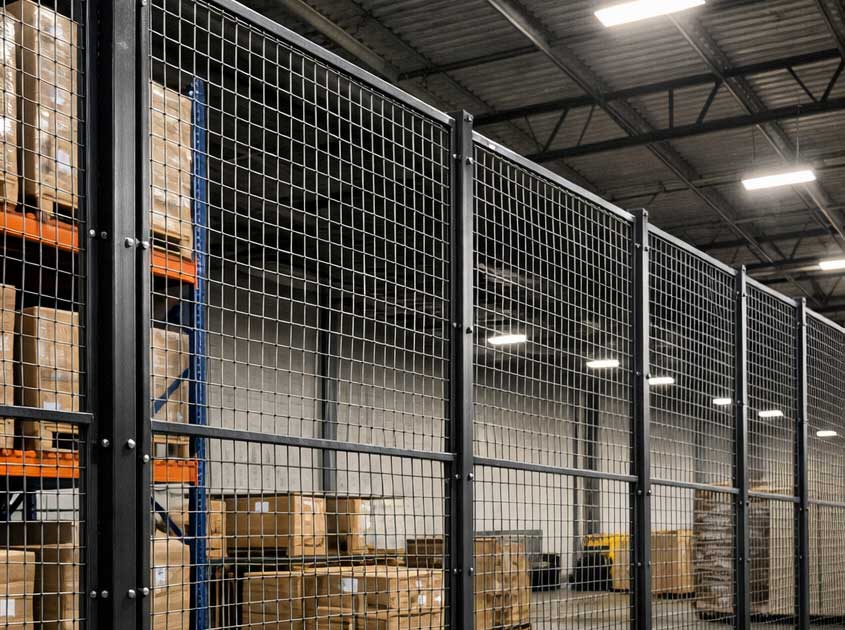

Industrial and Warehouse Use

Common wire diameter: 4.0–5.0 mm

Mesh size: 50 × 100 mm

Focus: Durability and safety separation

7. Regional Market Preferences

Different markets have different preferences based on regulations and usage habits.

South America:
4.0–5.0 mm wire, 50 × 100 mm mesh

Middle East:
Thicker wire (≥5.0 mm), smaller mesh for security

Europe:
Standardized sizes, emphasis on consistency and coating quality

Africa & Southeast Asia:
Cost-effective specs such as 3.0–4.0 mm, larger mesh sizes

Understanding regional demand helps importers avoid specification mismatches.

8. Tolerance and Quality Control

A professional welded wire panel manufacturer should control:

Wire diameter tolerance (±0.05 mm)

Mesh size tolerance (±2 mm)

Weld strength consistency

Panel flatness and squareness

Poor tolerance control may cause installation difficulties or rejection during inspection.

9. Customization Beyond Standard Sizes

While standard specifications cover most applications, many projects require customization:

Non-standard mesh sizes

Special panel widths or heights

Higher zinc coating thickness

PVC coating colors

Stainless steel grades

Experienced Chinese manufacturers can offer OEM and project-based customization without compromising lead time.

10. Final Thoughts: Choosing the Right Specification

There is no universal “best” wire diameter or mesh size for welded wire panels. The right choice depends on:

Application purpose

Security and load requirements

Budget constraints

Local standards and climate

Working with a reliable welded wire panel manufacturer ensures that specifications are technically correct, cost-effective, and export-compliant.
