Hexagonal wire mesh is one of the most versatile wire mesh products used in agriculture, construction, landscaping, animal enclosures, plastering, and general industrial applications. It is commonly manufactured from galvanized iron wire, PVC-coated wire, or stainless steel wire and formed into a flexible hexagonal pattern.
However, choosing the right hexagonal wire mesh is not simply a matter of selecting a mesh size. The mesh opening, wire diameter, roll dimensions, coating, material, and intended application all affect the performance and cost of the finished product.
For distributors, contractors, agricultural suppliers, and project buyers, understanding these specifications makes it much easier to order the correct product and avoid unnecessary costs.
This guide explains the key factors to consider when choosing hexagonal wire mesh for different applications.

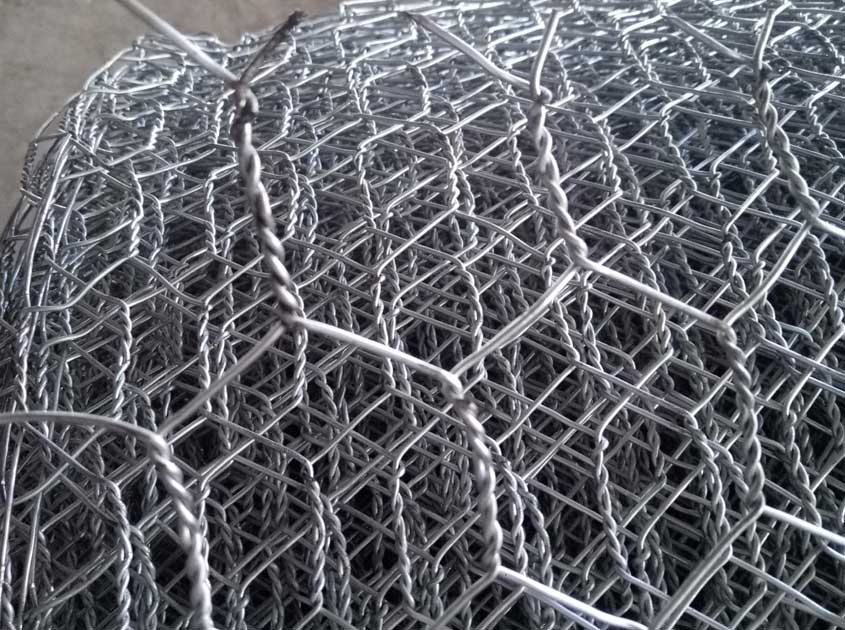

What Is Hexagonal Wire Mesh?

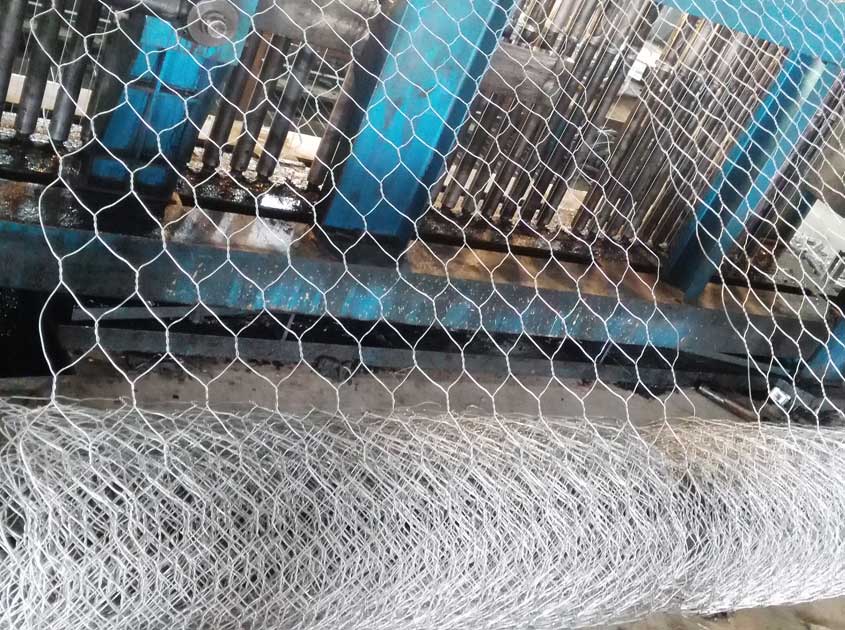

Hexagonal wire mesh is a woven wire mesh manufactured by twisting wire into a continuous hexagonal pattern.
Because the wires are mechanically woven rather than welded at every intersection, the mesh is relatively flexible. This makes it particularly useful where the material needs to follow curved surfaces, contain animals, or adapt to uneven ground.
Common names for this product include:
Hexagonal wire mesh
Hex wire mesh
Hex mesh
Chicken wire
Chicken wire mesh
Poultry netting
Rabbit wire
Hexagonal poultry netting
The same basic mesh structure can be produced in different wire diameters, mesh openings, widths, coatings, and materials.
Therefore, two products both called “chicken wire” may have very different specifications and applications.
1. Start With the Application
The first question when selecting hexagonal wire mesh should be:
What will the mesh be used for?
Different applications require different combinations of flexibility, strength, corrosion resistance, and mesh opening.
Application
Typical Considerations
Chicken and poultry enclosures Small mesh opening, galvanized wire

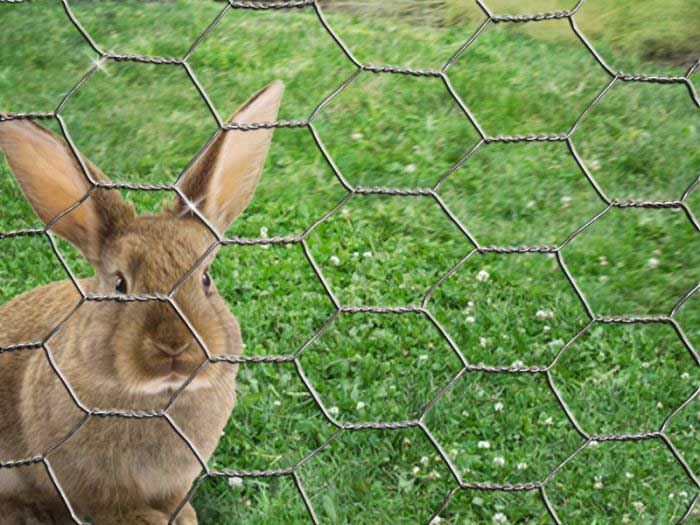

Rabbit cages Small opening, suitable wire diameter
Garden protection Small to medium opening, galvanized or PVC coated
Tree protection Appropriate opening and outdoor coating
Landscaping Flexible mesh, corrosion-resistant finish
Plaster reinforcement Suitable mesh opening and wire diameter
Insulation support Flexible hexagonal structure
Slope and erosion control Heavier wire and stronger construction
Gabion applications Heavy hexagonal mesh, higher strength
Temporary animal fencing Lightweight and economical mesh
General farm use Balance of opening, wire diameter and cost
A lightweight mesh designed for poultry may not be suitable for retaining stones or reinforcing a slope.
Likewise, using a heavy galvanized mesh for a simple garden enclosure may unnecessarily increase the project cost.
2. Choose the Correct Mesh Opening
Mesh opening is one of the most important specifications.
Common hexagonal wire mesh openings include approximately:
1/2 inch
3/4 inch
1 inch
1-1/4 inches
1-1/2 inches
2 inches
3 inches
Other customized sizes
Metric specifications may also be used depending on the market and supplier.
Why does mesh opening matter?
A smaller opening provides better containment of small animals and helps prevent objects or animals from passing through the mesh.
For example:
Small mesh openings are commonly selected for:
Chicks
Small poultry
Rabbits
Garden protection
Small animal enclosures
Larger openings may be suitable for:
Larger poultry
General farm applications
Landscaping
Construction reinforcement
Some erosion-control applications
The correct opening should be determined by the size of the animal, material being contained, and required level of protection.
Do not choose the mesh opening based only on price.
3. Select the Right Wire Diameter
Wire diameter determines much of the physical strength and durability of hexagonal wire mesh.
A small opening does not automatically mean the mesh is strong. Wire diameter must also be considered.
For lightweight chicken wire, relatively thin wire may be sufficient.
For heavier agricultural, construction, or erosion-control applications, a larger wire diameter is generally more appropriate.
When comparing suppliers, always ask for the actual wire diameter, rather than relying only on descriptions such as “heavy duty” or “thick wire.”
A buyer can compare:
Mesh opening + wire diameter + material + coating
instead of comparing product names alone.
Wire gauge vs wire diameter
Some suppliers specify wire using gauge numbers, while others use millimeters or inches.
Because gauge systems can vary, the safest approach for international purchasing is to request the wire diameter in millimeters.
For example:
Hexagonal wire mesh, 1 inch opening, 0.9 mm wire diameter
is much clearer than simply saying:
1 inch heavy chicken wire.
4. Decide Between Galvanized and PVC-Coated Hex Mesh
Surface treatment is another important consideration, particularly for outdoor applications.
Galvanized Hexagonal Wire Mesh
Galvanized wire mesh has a zinc coating designed to improve resistance to corrosion.
It is widely used for:
Poultry fencing
Rabbit fencing
Agricultural applications
Garden protection
Construction
Landscaping
General outdoor use
Galvanized mesh is often a practical choice when appearance is not the main consideration.
PVC-Coated Hexagonal Wire Mesh
PVC-coated hex mesh has a polymer coating over the wire.
It is commonly selected when the buyer wants:
Additional protection from the environment
A colored appearance
Better visual integration with landscaping
A more finished appearance
Green PVC-coated hexagonal mesh is particularly common in garden and landscaping applications.
However, coating quality matters. Buyers should specify the coating type, coating thickness or applicable standard, and whether the underlying wire is galvanized.
5. Consider the Galvanizing Method
Not all galvanized wire mesh has the same zinc coating.
Depending on the manufacturing process, hexagonal wire mesh can be produced using galvanized wire before weaving or galvanized after weaving.
These are commonly described as:
Galvanized before weaving
Galvanized after weaving
The zinc coating level can also vary significantly.
For indoor or relatively mild environments, a standard galvanized finish may be sufficient.
For long-term outdoor use or more aggressive environments, buyers should discuss the required zinc coating with the manufacturer.
Instead of simply asking for “galvanized chicken wire,” specify the required:
wire diameter + mesh opening + zinc coating + production method
when the application requires consistent corrosion performance.
6. Match the Mesh to the Environment
The installation environment should influence material selection.
Indoor Applications
For dry indoor applications, standard galvanized wire may provide an economical solution.
Normal Outdoor Applications
For gardens, farms, poultry areas, and landscaping, galvanized wire is commonly used.
Coastal or Humid Areas
In coastal, humid, or chemically aggressive environments, corrosion resistance becomes more important.
Depending on the project, buyers may consider:
Heavier zinc coating
PVC-coated galvanized wire
Stainless steel wire mesh
Stainless steel hexagonal mesh can provide much higher corrosion resistance, but it also costs considerably more.
Therefore, stainless steel should be selected when its additional performance is justified by the environment or application.
7. Choose the Correct Roll Width and Length
Hexagonal wire mesh is normally supplied in rolls.
Common roll widths can vary depending on the manufacturer and application.
For example, buyers may require:
Narrow rolls for small animal cages
Medium-width rolls for garden fencing
Wider rolls for construction or landscaping
Custom widths for specific projects
Roll length is also important.
A longer roll may reduce the number of joints during installation, but transportation, handling, and packaging must also be considered.
For large projects, ask the supplier to provide:
Roll width × roll length × rolls per pallet
This makes it easier to calculate total material requirements and container loading.
8. Lightweight vs Heavy-Duty Hexagonal Mesh
Not every hexagonal wire mesh product is intended for the same level of mechanical stress.
Lightweight Hex Mesh
Typically used for:
Chicken coops
Poultry enclosures
Rabbit protection
Garden applications
Temporary protection
Small animal enclosures
The main advantages are flexibility, easy handling, and lower cost.
Heavy-Duty Hex Mesh
Typically used for applications such as:
Erosion control
Landscaping
Slope stabilization
Rock containment
Gabion-related applications
Construction projects
Heavy-duty hexagonal mesh normally requires a larger wire diameter and more robust construction.
When purchasing for an engineering project, do not substitute lightweight chicken wire simply because it has the same hexagonal appearance.
9. Hexagonal Wire Mesh for Poultry and Animal Enclosures
One of the best-known uses of hexagonal wire mesh is poultry protection.
For chicken coops and poultry enclosures, the most important factors are usually:
Mesh opening
Wire diameter
Galvanized coating
Roll dimensions
Required service environment
A smaller opening can help prevent young birds or small animals from escaping and can reduce access for certain pests.
For larger animals, the mesh opening can often be increased.
The final specification should always be based on the actual animal size and enclosure design.
10. Hexagonal Wire Mesh for Gardens and Landscaping
Gardeners and landscapers use hexagonal mesh for many purposes, including:
Plant protection
Tree guards
Garden boundaries
Small animal exclusion
Landscaping structures
Temporary support
Decorative garden projects
For these applications, appearance can be almost as important as function.
PVC-coated green hexagonal wire mesh can blend more naturally into gardens and landscaped areas than bare metallic wire.
11. Hexagonal Mesh for Construction
Hexagonal wire mesh is also used in construction-related applications.
Depending on the specification, it can be used for:
Plaster reinforcement
Insulation support
Wall reinforcement applications
Surface reinforcement
Construction protection
The required wire diameter and mesh opening should be selected according to the construction system.
For structural or engineering applications, the mesh should not be selected solely from a general-purpose fencing specification. The project designer or engineer should determine the required performance.
12. Chicken Wire vs Heavy Hexagonal Wire Mesh
“Chicken wire” and “hexagonal wire mesh” are sometimes used as if they mean exactly the same product.
They do not necessarily describe the same specification.
Chicken wire generally refers to relatively lightweight hexagonal mesh used for poultry, gardening, and small animal applications.
Heavy hexagonal wire mesh can use substantially thicker wire and may be designed for demanding applications.
Therefore, when buying from an overseas supplier, avoid asking only for:
Chicken wire mesh
Instead, provide the exact specification you need.
For example:
1 inch hexagonal wire mesh, 0.9 mm galvanized wire, 1.0 m × 30 m rolls.
This reduces misunderstandings between buyer and manufacturer.
13. Woven Hex Mesh vs Welded Wire Mesh
Another common purchasing mistake is comparing hexagonal wire mesh directly with welded wire mesh without considering the application.
Hexagonal Wire Mesh
Advantages include:
Flexible structure
Easy to cut and handle
Suitable for irregular surfaces
Good for animal containment
Available in many opening sizes
Convenient roll packaging
Welded Wire Mesh
Advantages include:
Rigid welded structure
More stable panel or roll geometry
Suitable for applications requiring greater rigidity
Easy installation in many fencing systems
For a flexible poultry enclosure, hexagonal mesh may be more practical.
For a rigid fence panel, welded wire mesh may be the better option.
The right product depends on the installation requirements rather than which mesh type is generally “stronger.”
14. How to Specify Hexagonal Wire Mesh When Requesting a Quote
For distributors and project buyers, a clear specification can save considerable time.
A professional inquiry should include:
Product name
Mesh opening
Wire diameter
Material
Galvanizing requirement
PVC coating, if required
Roll width
Roll length
Quantity
Packaging requirement
Destination port or country
For example:
Hexagonal wire mesh
Mesh opening: 1 inch
Wire diameter: 0.9 mm
Material: galvanized iron wire
Roll width: 1.0 m
Roll length: 30 m
Quantity: 2,000 rolls
Destination: customer's port
With this information, a manufacturer can normally prepare a much more accurate quotation.
15. What Should Distributors Look for in a Hex Mesh Supplier?
If you are purchasing hexagonal wire mesh for resale, supplier consistency is just as important as the initial price.
A reliable supplier should be able to provide consistent:
Mesh opening
Wire diameter
Roll dimensions
Zinc coating
PVC coating
Packaging
Labeling
Production quality
For distributors, inconsistent wire diameter or roll length can create problems when products are resold under a standardized specification.
Before placing a large order, consider requesting:
Product samples
Technical specifications
Photos or videos of production
Packaging details
Quality inspection records
Relevant certificates or test reports when required
A factory with its own production equipment can also provide more flexibility for customized specifications and large-volume orders.
16. Common Mistakes When Buying Hexagonal Wire Mesh
Mistake 1: Comparing Only the Price
A lower price may result from thinner wire, smaller roll dimensions, or a different coating specification.
Always compare the complete specification.
Mistake 2: Not Confirming Wire Diameter
“20 gauge,” “22 gauge,” or “heavy duty” can create confusion between different suppliers.
Request the actual diameter in millimeters.
Mistake 3: Ignoring Zinc Coating
Two galvanized meshes can look similar while having different zinc coating levels.
For outdoor projects, coating requirements should be clearly defined.
Mistake 4: Choosing the Wrong Mesh Opening
A mesh that is too large may fail to contain small animals or provide the intended protection.
Mistake 5: Using Lightweight Mesh for Heavy Applications
Chicken wire is not a universal substitute for heavy hexagonal mesh.
Mistake 6: Forgetting Packaging
For international shipments, rolls should be properly packed to prevent damage, deformation, moisture exposure, or contamination during transportation.
17. Hexagonal Wire Mesh Buying Checklist
Before confirming an order, check the following:
Mesh opening confirmed
Wire diameter confirmed
Material confirmed
Galvanizing method specified
Zinc coating requirement confirmed
PVC coating and color confirmed, if applicable
Roll width confirmed
Roll length confirmed
Quantity confirmed
Packaging confirmed
Application and environment discussed
Sample or pre-production specification approved
Shipping and loading requirements confirmed
This simple checklist can prevent many common purchasing problems.
FAQ About Hexagonal Wire Mesh
What is the most common hexagonal wire mesh size?
Common sizes include approximately 1/2 inch, 1 inch, 1-1/2 inches, and 2 inches, although manufacturers can produce many other specifications.
Is hexagonal wire mesh the same as chicken wire?
Chicken wire is a common name for lightweight hexagonal wire mesh used for poultry and small animal applications. However, hexagonal wire mesh also includes heavier products designed for agriculture, construction, landscaping, and engineering applications.
Is galvanized or PVC-coated hexagonal mesh better?
Neither is universally better. Galvanized mesh is often an economical choice for general outdoor applications, while PVC-coated mesh can provide additional environmental protection and a colored finish. The correct option depends on the application and environment.
What wire diameter should I choose?
The correct wire diameter depends on the application, mesh opening, required strength, and environmental conditions. Lightweight poultry applications can use thinner wire, while demanding applications generally require heavier wire.
Can hexagonal wire mesh be customized?
Yes. Depending on the manufacturer, mesh opening, wire diameter, roll width, roll length, coating, color, and packaging can often be customized.
How do I compare quotations from different suppliers?
Compare the complete specification rather than the unit price alone. At minimum, compare mesh opening, wire diameter, material, coating, roll dimensions, packaging, quantity, and shipping terms.
Final Thoughts: Choose the Specification, Not Just the Product Name
Choosing the right hexagonal wire mesh starts with understanding what the mesh actually needs to do.
For poultry and small animal applications, mesh opening and wire diameter are usually the first specifications to consider. For outdoor applications, galvanizing and coating become more important. For landscaping and construction, the required strength and flexibility should be evaluated together.
For international buyers, the safest purchasing approach is to specify the product using measurable parameters:
Mesh opening + wire diameter + material + coating + roll dimensions + quantity
Rather than simply ordering “chicken wire” or “hex wire mesh.”
For distributors, contractors, agricultural suppliers, and project buyers, working directly with an experienced wire mesh manufacturer can also make it easier to obtain consistent specifications, customized production, export packaging, and technical support.
If you are sourcing hexagonal wire mesh from China, provide your required mesh opening, wire diameter, roll dimensions, coating, and quantity to the manufacturer. A detailed specification allows the supplier to recommend the most suitable product and prepare a more accurate quotation.
