Introduction

Choosing the right chain link wire mesh is an important step in ensuring the strength, durability, and performance of a fencing project. Although chain link mesh looks simple, different specifications can significantly affect its security level, service life, installation difficulty, and overall cost.

The correct choice depends on several factors, including the application purpose, environmental conditions, required security level, wire diameter, mesh opening, coating type, and installation requirements.

For residential fences, agricultural boundaries, industrial facilities, and high-security projects, selecting the right chain link wire mesh specification can help achieve the best balance between protection and budget.

This guide explains the key factors to consider when choosing chain link wire mesh for different projects.

1. Determine the Purpose of Your Chain Link Wire Mesh Project

The first step in choosing chain link wire mesh is understanding the purpose of the installation.

Different applications require different levels of strength and protection.

Residential Fencing

For homes, gardens, and private properties, the main requirements are usually:

• Good appearance

• Easy installation

• Reasonable cost

• Basic security protection

Recommended options:

• PVC coated chain link mesh

• Medium wire diameter

• Standard mesh opening

Common specifications:

• Wire diameter: 2.5 mm - 3.0 mm

• Mesh opening: 50 mm

• Height: 1.2 m - 2 m

Agricultural and Livestock Fencing

Farm and livestock projects require durable fencing that can withstand outdoor conditions.

Important factors include:

• Corrosion resistance

• Long service life

• Ability to contain animals

Recommended options:

• Hot dipped galvanized chain link mesh

• Larger mesh openings

• Strong wire structure

Common applications:

• Farms

• Ranches

• Poultry areas

• Animal enclosures

Industrial Security Fencing

Industrial projects usually require higher protection levels.

Examples:

• Factories

• Warehouses

• Power plants

• Storage facilities

Recommended options:

• Thicker wire diameter

• Smaller mesh opening

• Hot dipped galvanized coating

Typical specifications:

• Wire diameter: 3.5 mm - 5.0 mm

• Mesh opening: 25 mm - 50 mm

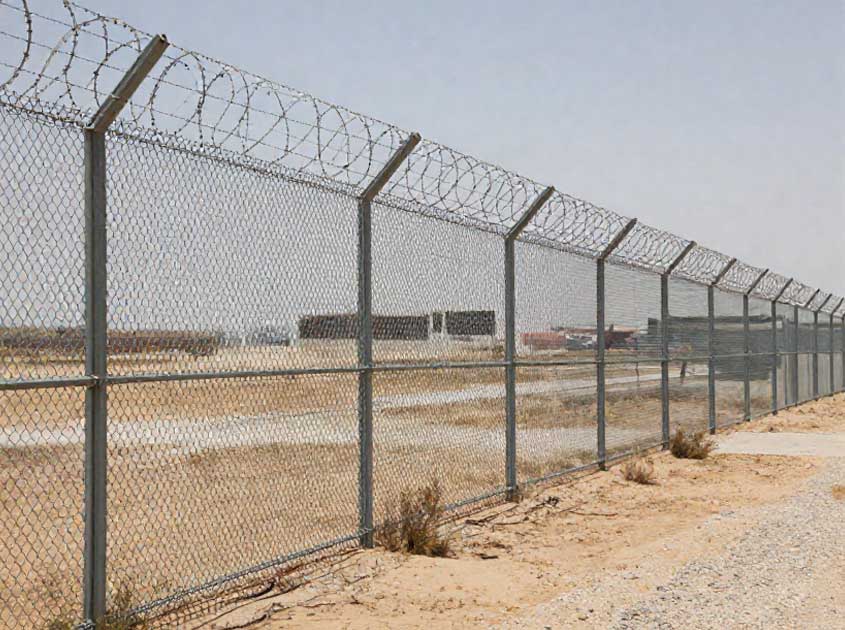

High Security Projects

For airports, military facilities, and critical infrastructure, chain link mesh must provide stronger protection.

Recommended features:

• Heavy duty wire

• Small mesh opening

• High-quality galvanized coating

• Additional security systems

Additional protection may include:

• Razor wire

• Barbed wire

• Security gates

2. Choose the Right Wire Diameter

Wire diameter is one of the most important specifications because it directly affects the strength of chain link wire mesh.

A thicker wire generally provides:

• Higher impact resistance

• Better security

• Longer service life

However, thicker wire also increases material cost.

Common Wire Diameter Selection

How to Choose?

Choose a thinner wire when:

• Budget is limited

• Security requirements are low

• The fence is temporary

Choose a thicker wire when:

• Security is important

• The fence will be used for many years

• The area requires higher protection

3. Select the Correct Mesh Opening Size

Mesh opening refers to the distance between the wires in the diamond pattern.

The mesh size affects:

• Security level

• Visibility

• Material usage

• Overall cost

Small Mesh Opening

Examples:

• 25 mm

• 40 mm

Advantages:

• More difficult to cut

• Better security

• Higher strength

Suitable for:

• Industrial facilities

• Security boundaries

• Correctional facilities

Standard Mesh Opening

Example:

• 50 mm

This is the most common option.

Suitable for:

• Residential fences

• Commercial fencing

• Sports fields

Large Mesh Opening

Examples:

• 75 mm

• 100 mm

Advantages:

• Lower cost

• Faster installation

• Good visibility

Suitable for:

• Agriculture

• Large property boundaries

4. Select the Right Surface Treatment

The coating type determines how well the chain link mesh performs in different environments.

Galvanized Chain Link Wire Mesh

Galvanized mesh is the most commonly used option.

Advantages:

• Good corrosion resistance

• Affordable

• Suitable for outdoor use

Recommended for:

• General fencing projects

• Industrial applications

• Agricultural fencing

PVC Coated Chain Link Wire Mesh

PVC coating adds an additional protective layer.

Advantages:

• Better appearance

• Extra corrosion resistance

• Color options available

Recommended for:

• Residential fencing

• Parks

• Schools

• Decorative applications

Stainless Steel Chain Link Mesh

Stainless steel provides maximum corrosion resistance.

Recommended for:

• Coastal environments

• Chemical industries

• Food processing facilities

5. Consider Environmental Conditions

The installation environment has a major impact on product selection.

Normal Outdoor Environment

Recommended:

• Galvanized chain link mesh

Examples:

• Residential areas

• Agricultural land

• Commercial properties

Humid or Coastal Areas

Recommended:

• Hot dipped galvanized mesh

• PVC coated mesh

• Stainless steel mesh

Because salt and moisture accelerate corrosion.

Industrial Chemical Environment

Recommended:

• Stainless steel chain link mesh

because it provides better resistance against chemical corrosion.

6. Consider Fence Height Requirements

The required fence height depends on the protection purpose.

Common heights:

Higher fences are often combined with additional security accessories.

7. Balance Quality and Cost When Choosing Chain Link Wire Mesh

When selecting chain link wire mesh, the lowest price is not always the best choice. A cheaper product may use thinner wire, lower coating thickness, or weaker manufacturing processes, which can lead to shorter service life and higher replacement costs.

A professional buyer should evaluate the relationship between:

• Initial purchase cost

• Product quality

• Installation cost

• Maintenance requirements

• Expected service life

Choosing Based on Project Requirements

For example:

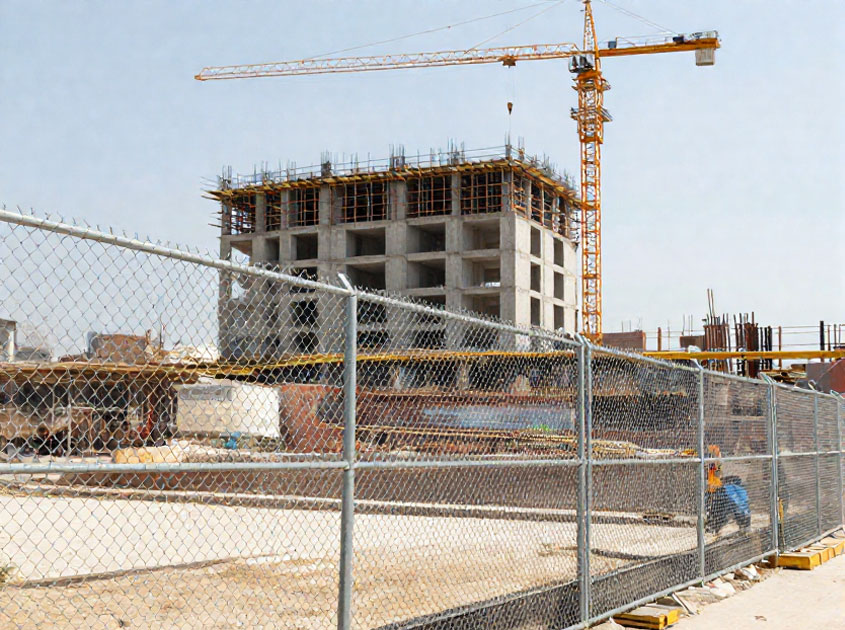

Low Budget Temporary Fence

Suitable choice:

• Standard galvanized chain link mesh

• Medium wire diameter

• Larger mesh opening

Applications:

• Temporary construction areas

• Short-term projects

• Event barriers

Long-Term Industrial Fence

Suitable choice:

• Hot dipped galvanized chain link mesh

• Thicker wire diameter

• Smaller mesh opening

Benefits:

• Better durability

• Higher security

• Lower maintenance cost

Premium Appearance Projects

Suitable choice:

• PVC coated chain link mesh

• Customized colors

• High-quality coating

Applications:

• Residential communities

• Parks

• Schools

• Commercial properties

8. Check Chain Link Wire Mesh Quality Before Purchasing

Before placing an order, buyers should evaluate several important quality factors.

1. Wire Diameter Accuracy

The actual wire diameter should match the required specification.

A smaller-than-promised wire diameter can reduce:

• Fence strength

• Security performance

• Product lifespan

2. Mesh Opening Accuracy

A high-quality chain link wire mesh should have:

• Uniform diamond openings

• Consistent weaving

• No loose connections

Uneven mesh openings may affect installation and appearance.

3. Coating Quality

For galvanized products, buyers should check:

• Zinc coating quality

• Surface smoothness

• Corrosion resistance

For PVC coated products, check:

• Coating thickness

• Adhesion strength

• Color consistency

4. Edge Treatment

Chain link wire mesh edges are usually available in different finishes.

Common options:

• Knuckled edge

• Twisted edge

• Knuckle and twist combination

The edge style should match safety requirements and installation conditions.

9. Common Mistakes When Buying Chain Link Wire Mesh

Many buyers focus only on price and overlook important technical details.

Here are some common mistakes to avoid.

Mistake 1: Choosing the Wrong Wire Diameter

A wire diameter that is too thin may reduce:

• Security

• Durability

• Impact resistance

Always select wire thickness according to the application.

Mistake 2: Ignoring Coating Requirements

A product suitable for a dry environment may not perform well in:

• Coastal areas

• High humidity regions

• Industrial environments

Choosing the correct coating is essential for long-term performance.

Mistake 3: Selecting the Wrong Mesh Opening

A larger mesh opening may reduce cost, but it may not provide enough security.

For high-security applications, smaller openings are usually recommended.

Mistake 4: Buying Without Confirming Specifications

Before ordering, always confirm:

• Wire diameter

• Mesh opening

• Height

• Roll length

• Surface treatment

• Quantity

Clear specifications prevent misunderstandings between buyers and suppliers.

10. Chain Link Wire Mesh Buying Checklist

Before purchasing, buyers can use the following checklist:

11. How to Choose a Reliable Chain Link Wire Mesh Manufacturer?

Choosing the right manufacturer is just as important as choosing the right product specification.

A professional supplier should provide:

Manufacturing Capability

A reliable factory should have:

• Modern weaving equipment

• Experienced production workers

• Stable raw material supply

• Quality control procedures

Custom Production Ability

Different projects often require customized specifications.

A capable manufacturer should support:

• Custom wire diameter

• Custom mesh size

• Custom height

• Custom coating

• Special packaging requirements

Export Experience

For international buyers, export experience is important.

An experienced supplier should understand:

• International standards

• Export documentation

• Container loading

• Packaging requirements

12. Why Choose Qunkun Metal for Chain Link Wire Mesh?

Qunkun Metal specializes in manufacturing and supplying wire mesh and fencing products for global markets.

We provide chain link wire mesh solutions for:

• Fence contractors

• Importers

• Distributors

• Construction companies

• Industrial projects

• Agricultural applications

Our production capabilities include:

Various Specifications

Available options include:

• Galvanized chain link mesh

• PVC coated chain link mesh

• Different wire diameters

• Different mesh openings

• Customized roll sizes

Reliable Quality Control

We focus on:

• Accurate dimensions

• Strong weaving

• Consistent coating

• Stable product performance

Professional Export Support

We assist international customers with:

• Product selection

• Technical specifications

• Export packaging

• Shipping arrangements

Frequently Asked Questions About Choosing Chain Link Wire Mesh

What is the best wire diameter for chain link wire mesh?

The best wire diameter depends on the application. Residential fencing usually uses medium wire diameters, while industrial and security projects require thicker wire for higher strength.

What mesh size is best for security fencing?

Smaller mesh openings, such as 25 mm or 40 mm, are generally better for security applications because they provide stronger protection against cutting and climbing.

Should I choose galvanized or PVC coated chain link mesh?

Galvanized mesh is suitable for most outdoor applications and provides reliable corrosion resistance. PVC coated mesh is preferred when appearance and additional protection are important.

How do I calculate how much chain link wire mesh I need?

The required quantity depends on:

• Fence length

• Fence height

• Roll length

• Installation design

It is recommended to calculate the total perimeter and add extra material for installation adjustments.

Can chain link wire mesh be used in coastal areas?

Yes, but the coating type should be carefully selected. Hot dipped galvanized, PVC coated, or stainless steel mesh are usually recommended for coastal environments.

Conclusion

Choosing the right chain link wire mesh requires careful consideration of application, wire diameter, mesh opening, coating type, environmental conditions, and quality requirements.

A properly selected chain link mesh system can provide long-lasting protection while maintaining cost efficiency and easy installation.

Whether the project involves residential fencing, agriculture, industrial security, or infrastructure protection, selecting the correct specifications ensures better performance and durability.

As an experienced wire mesh manufacturer, Qunkun Metal provides customized chain link wire mesh solutions for customers worldwide, helping contractors, distributors, and project owners select reliable fencing products for different applications.
