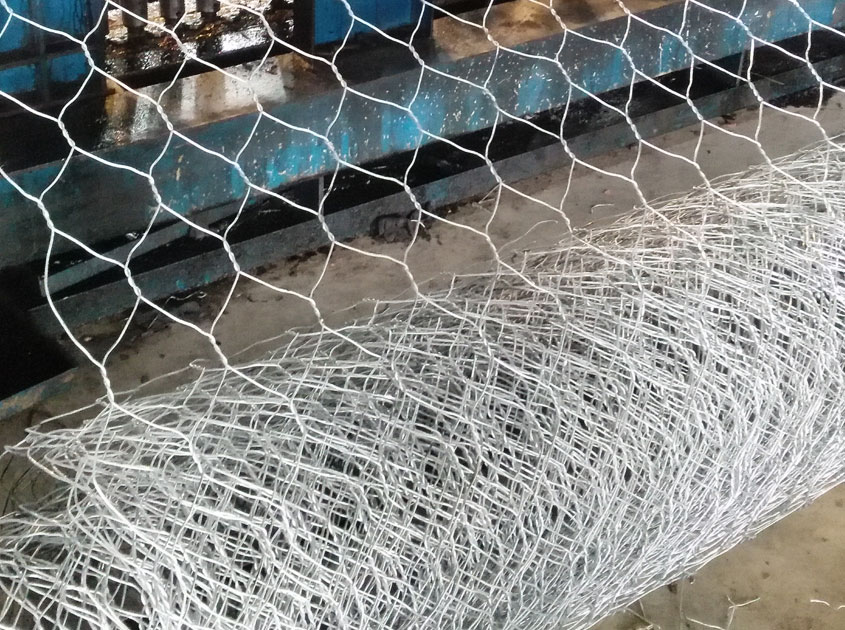

Hexagonal wire mesh is a flexible wire mesh product recognized by its distinctive hexagonal openings. It is widely used for poultry enclosures, animal fencing, garden protection, agriculture, construction, erosion control, gabion structures, and general-purpose applications.
Because of its simple structure, flexible shape, and relatively low material cost, hexagonal wire mesh remains a practical choice for projects that require a lightweight but continuous wire barrier.
However, not all hexagonal wire mesh is the same. Different wire materials, wire diameters, opening sizes, mesh widths, roll lengths, and surface coatings can produce very different products.
This guide explains the main types and sizes of hexagonal wire mesh, how it is manufactured, where it is used, and how to select the right specification for a project.
What Is Hexagonal Wire Mesh?
Hexagonal wire mesh is made by twisting metal wires together to form a series of interconnected hexagonal openings.
It is commonly known as:
Chicken wire mesh
Chicken wire
Hexagonal wire netting
Hexagonal wire mesh
The mesh is normally supplied in rolls, making it convenient for fencing and enclosure applications.
Its flexible structure allows it to follow curved surfaces and uneven ground more easily than rigid welded wire mesh.
Why Is Hexagonal Wire Mesh Popular?
Hexagonal wire mesh has several characteristics that make it useful for agricultural and general-purpose projects.
Flexible Structure
The twisted-wire construction allows the mesh to bend and conform to different shapes.
Lightweight
Many hexagonal mesh products use relatively thin wire, making them easy to handle and install.
Economical
It generally requires less material than heavy-duty welded or rigid fencing products.
Easy Installation
The mesh can be cut and fixed using relatively simple tools.
Continuous Roll Supply
Long rolls make it convenient to cover larger areas without installing many separate panels.
Multiple Materials and Coatings
It can be manufactured from galvanized steel, PVC-coated wire, stainless steel, and other materials depending on the application.
How Is Hexagonal Wire Mesh Made?
The basic manufacturing process involves forming the wire into interconnected hexagonal openings.
A typical production process includes:
Selecting steel or other metal wire
Drawing the wire to the required diameter
Galvanizing or coating the wire when required
Feeding the wire into the mesh machine
Twisting the wires into hexagonal openings
Controlling the mesh opening and roll width
Cutting or rolling the finished mesh
Packaging for shipment
The exact process depends on the material and product specification.
Main Types of Hexagonal Wire Mesh
1. Galvanized Hexagonal Wire Mesh
Galvanized hexagonal wire mesh is one of the most common types.
The steel wire is protected with a zinc coating to improve corrosion resistance.
It is commonly used for:
Chicken fencing
Poultry houses
Rabbit enclosures
Garden fencing
Farm applications
General outdoor use
For outdoor applications, buyers should pay attention to the galvanizing method and zinc coating.
2. PVC-Coated Hexagonal Wire Mesh
PVC-coated hexagonal mesh uses galvanized or other steel wire with an additional PVC coating.
Common colors include:
Green
Black
White
Dark green
Custom colors
PVC coating can provide:
Additional surface protection
Improved appearance
Color options
It is commonly selected for garden and landscape applications where appearance is important.
3. Stainless Steel Hexagonal Wire Mesh
Stainless steel hexagonal mesh is designed for applications where higher corrosion resistance is required.
Common stainless steel grades may include:
SS304
SS316
It can be considered for:
Food-related applications
Marine environments
Chemical environments
Specialized animal enclosures
Industrial applications
It normally costs more than galvanized steel mesh.
4. Chicken Wire Mesh
Chicken wire is one of the best-known applications of hexagonal wire mesh.
It is commonly used for:
Poultry enclosures
Chicken runs
Small bird cages
Garden protection
The term "chicken wire" generally describes the application rather than a specific material or specification.
Therefore, chicken wire can be produced using different wire diameters, opening sizes, and coatings.
5. Hexagonal Wire Mesh for Construction
Heavier hexagonal wire mesh can be used in certain construction applications.
Examples include:
Wall reinforcement
Plaster support
Building repair
Insulation support
Construction reinforcement
The appropriate product must be selected according to the actual engineering requirement. Light-duty chicken mesh should not automatically be treated as structural reinforcement.
6. Hexagonal Mesh for Gabions and Erosion Control
Heavy-duty hexagonal wire mesh can be used in gabion-related and erosion-control structures.
These products are substantially different from lightweight chicken wire.
They generally require:
Heavier wire
Larger structural dimensions
Appropriate corrosion protection
Higher mechanical performance
The mesh is formed into baskets or related structures that can be filled with stones.
Common Hexagonal Wire Mesh Sizes
Hexagonal wire mesh is available in a wide range of opening sizes.
Common openings may include:
13 mm
16 mm
19 mm
25 mm
31 mm
38 mm
50 mm
60 mm
75 mm
100 mm
Exact availability depends on the manufacturer and production equipment.
13 mm Hexagonal Wire Mesh
The relatively small opening provides greater physical coverage.
It may be considered for:
Small bird enclosures
Small animal protection
Fine garden applications
Certain screening purposes
The appropriate wire diameter should be selected according to the required strength.
19 mm Hexagonal Wire Mesh
19 mm mesh is a common choice for smaller animal and poultry-related applications.
It can be used for:
Poultry
Small animal enclosures
Garden protection
Hobby farming
25 mm Hexagonal Wire Mesh
25 mm openings provide a useful balance between coverage and material consumption.
Typical applications include:
Chicken runs
Garden fencing
Small animal enclosures
Agricultural applications
50 mm Hexagonal Wire Mesh
Larger openings reduce the amount of wire required and can provide greater visibility and airflow.
It can be used for:
Poultry fencing
Garden structures
Farm applications
General-purpose enclosures
The appropriate wire thickness depends on the expected loads.
75–100 mm Hexagonal Wire Mesh
Larger hexagonal openings are more suitable for certain:
Agricultural applications
Erosion-control structures
Gabion-related products
Heavy-duty projects
The mesh specification should be designed according to the application rather than selecting the opening size alone.
Why Does Wire Diameter Matter?
Wire diameter has a major effect on the performance of hexagonal wire mesh.
A thicker wire generally provides:
Greater strength
Greater resistance to impact
Higher weight
Higher material consumption
Higher cost
A thinner wire generally provides:
Lower weight
Easier handling
Lower cost
Less mechanical strength
Therefore, selecting the smallest possible wire is not always the best way to reduce project costs.
Typical Wire Diameters
Depending on the product, hexagonal wire mesh may use wire diameters such as:
0.4 mm
0.5 mm
0.6 mm
0.7 mm
0.8 mm
0.9 mm
1.0 mm
1.2 mm
1.5 mm
2.0 mm
Heavy-duty products may use even thicker wire.
The available combinations of opening size and wire diameter vary by manufacturer.
Hexagonal Wire Mesh Roll Widths
Common roll widths can include:
0.5 m
0.6 m
0.8 m
1.0 m
1.2 m
1.5 m
1.8 m
2.0 m
Custom widths may also be available for larger projects.
Roll Length
Depending on the mesh type and wire diameter, rolls may be supplied in different lengths.
Common lengths include:
10 m
20 m
25 m
30 m
50 m
100 m
Lightweight mesh can often be supplied in longer rolls, while heavier mesh may require shorter rolls because of weight and handling considerations.
Galvanizing Methods
For galvanized hexagonal wire mesh, buyers should distinguish between different galvanizing methods.
Galvanized Before Weaving
The steel wire is galvanized before being formed into hexagonal mesh.
Advantages can include:
Relatively uniform wire coating
Economical production
Suitable for many general-purpose applications
Hot-Dip Galvanized After Weaving
The mesh is manufactured first and then hot-dip galvanized.
This can provide a more comprehensive zinc coating over the finished mesh structure.
It is often considered for applications where greater corrosion protection is required.
PVC-Coated Hexagonal Mesh
PVC coating can be added over galvanized steel wire.
The final product therefore has:
Steel Wire → Zinc Coating → PVC Coating
This structure can provide an additional protective layer and allows the mesh to be produced in different colors.
Green is particularly common in garden and landscape applications because it blends naturally with vegetation.
Hexagonal Wire Mesh Applications
1. Poultry Fencing
This is one of the most common applications.
Hexagonal mesh can be used to construct:
Chicken runs
Poultry houses
Bird enclosures
Temporary poultry barriers
The opening should be small enough for the intended application, while the wire diameter should provide adequate durability.
2. Chicken Coop
Hexagonal wire mesh can be attached to a wooden or metal frame to create a chicken enclosure.
It provides:
Ventilation
Physical separation
Visibility
Lightweight construction
For outdoor poultry applications, galvanized or PVC-coated wire can be considered depending on the expected exposure.
3. Rabbit Enclosures
Hexagonal wire mesh can be used for rabbit-related enclosures, although welded wire mesh is often preferred where greater rigidity or specific opening dimensions are required.
For animal contact applications, the wire should have a suitable finish without sharp exposed edges.
4. Garden Fencing
Gardeners use hexagonal wire mesh to protect:
Vegetables
Flowers
Seedlings
Trees
Small plants
It can help prevent small animals from entering protected areas.
PVC-coated green mesh is particularly popular for landscaping because it has a less industrial appearance.
5. Small Animal Enclosures
Depending on the specification, hexagonal mesh can be used for:
Bird enclosures
Small pet areas
Poultry
Small livestock
The opening size must be selected according to the animal.
6. Crop Protection
Farmers and gardeners can install hexagonal mesh around crops to reduce access by certain birds and small animals.
The mesh can be installed:
Vertically around planting areas
Around individual plants
Over garden structures
7. Building and Plaster Applications
Certain heavier hexagonal wire mesh products are used as reinforcement or support in construction.
Potential applications include:
Plaster reinforcement
Wall reinforcement
Insulation support
Surface stabilization
These products should be distinguished from lightweight chicken wire.
8. Gabion Structures
Heavy hexagonal wire mesh can be formed into gabion baskets.
The baskets are filled with stones and can be used for:
Retaining structures
Riverbank protection
Slope stabilization
Erosion control
Landscape structures
For these applications, wire diameter, mesh opening, coating, and structural design are critical.
9. Erosion Control
Certain heavy-duty hexagonal mesh systems can be used to stabilize soil and slopes.
The mesh can help hold stones or other materials in place.
For long-term outdoor use, corrosion protection should be carefully specified.
10. Temporary Protection
Lightweight hexagonal mesh can also be used for temporary:
Garden barriers
Construction protection
Animal separation
Temporary enclosures
Its roll form makes installation and removal relatively convenient.
Hexagonal Wire Mesh vs Welded Wire Mesh
These two products are often compared because both can be used for fencing and animal enclosures.
Feature
Hexagonal Wire Mesh
Welded Wire Mesh
Structure Twisted wire Welded intersections
Shape Hexagonal Usually square/rectangular
Flexibility High Lower
Rigidity Lower Higher
Installation Easy Easy
Roll supply Common Common for lighter mesh
Panel supply Less common Very common
Poultry Excellent Excellent
Garden Excellent Excellent
Heavy-duty fencing Limited Better
Uneven surfaces Excellent Moderate
A useful rule is:
Choose hexagonal mesh when flexibility and economical enclosure are priorities.
Choose welded mesh when rigidity and stable openings are more important.
Hexagonal Wire Mesh vs Chain Link Fence
Chain link is generally more suitable for larger perimeter fencing.
Feature
Hexagonal Mesh
Chain Link
Opening Hexagonal Diamond
Typical wire Light to medium Medium/heavy
Flexibility Very high High
Small animal enclosure Excellent Moderate
Garden use Excellent Good
Perimeter fence Limited Excellent
Large property boundary Limited Excellent
Cost Generally economical Economical
Heavy security Not suitable More suitable
Hexagonal mesh is generally designed for lighter enclosure and agricultural applications, while chain link is widely used for perimeter fencing.
How to Choose the Right Hexagonal Wire Mesh?
Step 1: Identify the Application
Determine whether the mesh will be used for:
Chicken fencing
Poultry
Rabbit enclosure
Garden protection
Crop protection
Construction
Gabions
Erosion control
This immediately narrows down the suitable product range.
Step 2: Choose the Opening Size
Consider the size of the:
Animal
Object
Material
Stone
Debris
being contained or separated.
Smaller openings provide greater coverage.
Larger openings generally reduce material consumption and increase visibility.
Step 3: Select Wire Diameter
For light-duty applications, thinner wire can reduce weight and cost.
For applications involving:
Animals
Impact
Stones
Outdoor structural loads
a heavier wire may be required.
Step 4: Select the Coating
For general outdoor use:
Galvanized wire is a common choice.
For additional protection and color:
PVC-coated galvanized wire can be considered.
For demanding corrosion environments:
Stainless steel may be appropriate depending on the application.
Step 5: Choose Roll Dimensions
Confirm:
Roll width
Roll length
Number of rolls
For export orders, packaging dimensions and container loading should also be considered.
Step 6: Consider the Installation
Think about how the mesh will be attached.
Possible supports include:
Wooden posts
Steel posts
Frames
Fence stakes
Existing structures
The support system should be appropriate for the mesh and the expected environmental loads.
Common Mistakes When Buying Hexagonal Wire Mesh
Mistake 1: Choosing Only by Opening Size
A 25 mm opening does not tell you the complete specification.
You also need to know:
Wire diameter + material + coating + roll dimensions
Mistake 2: Using Chicken Wire for Heavy-Duty Fencing
Lightweight chicken wire is designed for relatively light enclosure applications.
It should not automatically be substituted for:
Security fencing
Heavy livestock fencing
High-impact barriers
Mistake 3: Ignoring the Zinc Coating
Two galvanized products can have different levels of corrosion protection.
For outdoor projects, coating specifications should be confirmed.
Mistake 4: Choosing the Wrong Animal Opening
The mesh opening needs to match the animal being contained.
A larger opening may allow small animals or young poultry to escape.
Mistake 5: Forgetting Edge Safety
Cut mesh can create sharp wire ends.
For animal enclosures and areas where people have frequent contact with the mesh, installation should avoid exposed sharp edges.
Hexagonal Wire Mesh Selection Table
Application
Typical Mesh Type
Main Considerations
Chicken coop Galvanized hexagonal Opening + wire diameter
Poultry run Galvanized/PVC coated Opening + corrosion resistance
Rabbit enclosure Fine hexagonal/welded Opening + safety
Garden fence PVC-coated hexagonal Color + flexibility
Crop protection Fine hexagonal Opening + height
Temporary barrier Lightweight hexagonal Weight + roll length
Plaster support Construction hexagonal Wire + engineering requirements
Gabion Heavy-duty hexagonal Wire + coating + strength
Erosion control Heavy-duty system Corrosion + structural performance
Frequently Asked Questions
What is hexagonal wire mesh?
Hexagonal wire mesh is a flexible wire mesh made by twisting wires together to create hexagonal openings. It is commonly used for poultry, agriculture, gardens, animal enclosures, and certain construction applications.
Why is it called chicken wire?
It is commonly called chicken wire because one of its most traditional applications is constructing poultry enclosures. The name describes a common use rather than a specific wire grade.
What is the most common hexagonal wire mesh size?
Common opening sizes include approximately 13 mm, 19 mm, 25 mm, 50 mm, and larger sizes. The appropriate size depends on the application.
Is galvanized hexagonal wire mesh suitable for outdoor use?
Yes. Galvanized hexagonal mesh is widely used outdoors. The required zinc coating depends on exposure conditions and expected service life.
Is PVC-coated hexagonal mesh better than galvanized mesh?
Not universally. PVC-coated mesh provides an additional coating and color options, while standard galvanized mesh is often more economical. The best choice depends on the environment and appearance requirements.
Can hexagonal wire mesh be used for gabions?
Heavy-duty hexagonal wire mesh can be used for gabion structures. Lightweight chicken wire should not be confused with engineered gabion mesh.
Can hexagonal wire mesh be customized?
Yes. Manufacturers can often customize wire diameter, opening size, width, roll length, material, coating, and packaging according to project requirements.
Why Choose Qunkun Metal Hexagonal Wire Mesh?
Qunkun Metal supplies hexagonal wire mesh for agricultural suppliers, fencing distributors, construction companies, garden suppliers, animal-equipment distributors, contractors, and international B2B buyers.
Available products include:
Galvanized hexagonal wire mesh
PVC-coated hexagonal wire mesh
Stainless steel hexagonal wire mesh
Chicken wire mesh
Heavy-duty hexagonal mesh
Construction-related hexagonal mesh
Specifications can be customized according to:
Opening Size + Wire Diameter + Material + Coating + Width + Roll Length
Common applications include:
Poultry + Agriculture + Gardens + Animal Enclosures + Crop Protection + Construction + Gabions + Erosion Control
For a quotation, buyers can provide the opening size, wire diameter, material, coating, roll dimensions, quantity, application, and destination.
Conclusion
Hexagonal wire mesh is a simple but highly versatile wire mesh product.
Its biggest advantages are:
Flexibility + Lightweight Construction + Easy Installation + Continuous Roll Supply + Cost Efficiency
For poultry and garden applications, lightweight galvanized or PVC-coated hexagonal mesh is often a practical choice.
For more demanding agricultural or construction applications, heavier wire and stronger corrosion protection may be required.
For gabions and erosion control, the product must be selected as a heavy-duty engineered mesh system, rather than ordinary chicken wire.
When selecting hexagonal wire mesh, focus on:
Opening Size + Wire Diameter + Material + Coating + Roll Dimensions + Application
The right combination of these specifications can provide an economical and reliable solution for everything from a small chicken enclosure to a large agricultural or erosion-control project.
